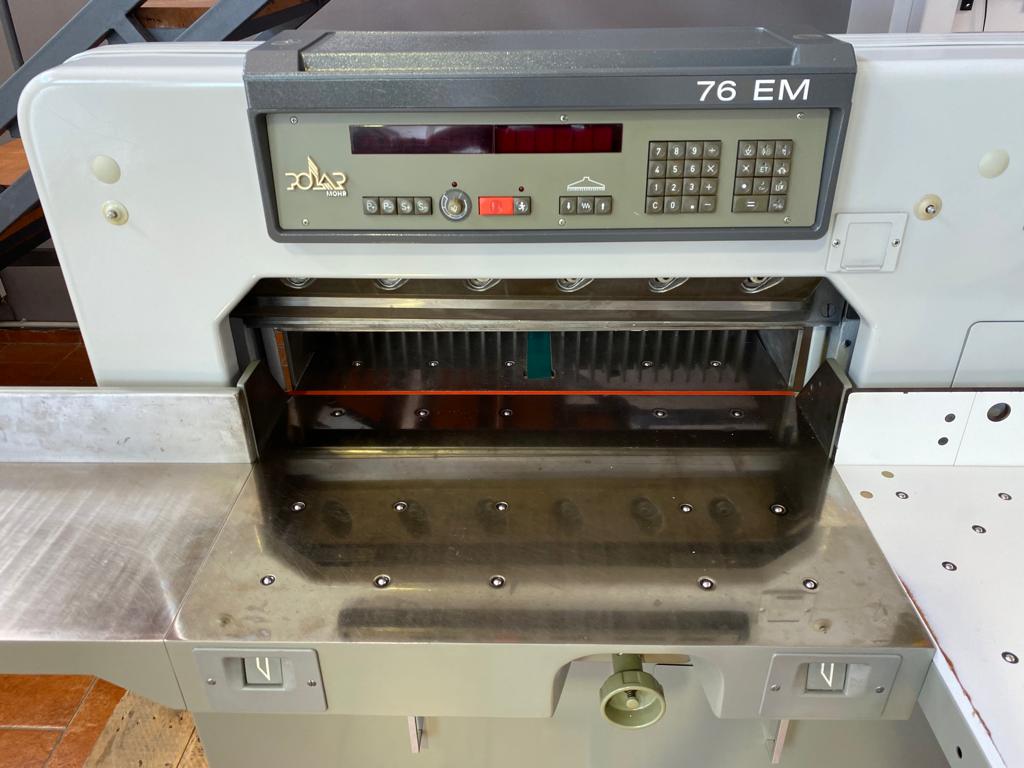

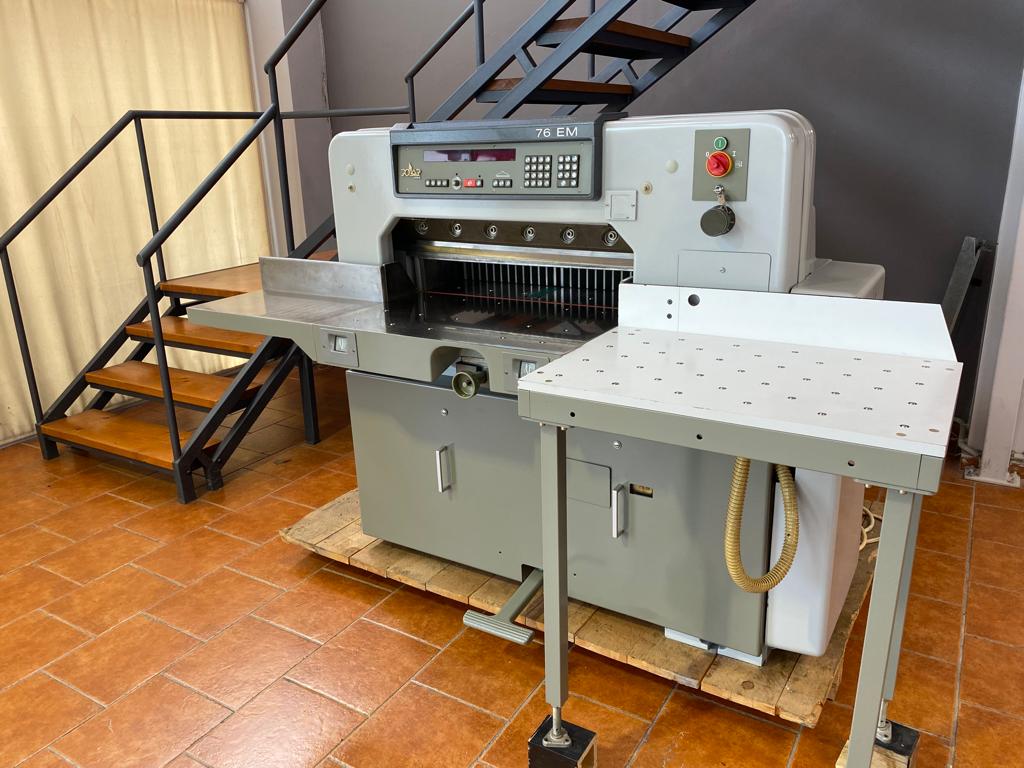

Guillotine Machine Polar 76EM

Machine: Polar 76EM

Description:

  • Electro magnetic clutch & brake (Two button operation)
  • powered interlocked backgaug
  • variable pressure hydraulic clamping
  • Digital programming and readout (99 progs. 999 locations)
  • single end pull dip shear action
  • air bed
  • Safety Equipment: Infra red front guarding system
  • timed and cross monitored cut buttons
  • rear table guarding
  • compliant with HSE/PIAC standards on guillotine safety.

Tools: Two blades, tools manuals

Category: .

Product Description

Guillotine Machine Polar 76EM

Polar 76EM
Specifications

  • Cutting Width 76cm
  • Clamp Opening 11cm
  • Feed Depth 76cm
  • Power required 1.5kW / 2 H.P.
  • Net weight 1040kG
  • Width without side tables 152cm
  • including side tables
  • Length 175cm
  • Height 140cm
  • Table Front Length 48.5cm
  • Table Height 90cm
  • Clamp Pressure min 100daN / 220lbs
  • Clamp Pressure max 2500daN / 5550lbs
  • Knife thickness 11.7mm
  • Grinding reserve 3cm
  • Smallest cut without false clamp 1.5cm
  • With false clamp 6cm
  • Backgauge speed, slow/express 8.2cm / sec
  • Static floor load 650 daN / m2
  • Contact area load 1.5 daN / cm2
  • Dynamic surcharge 20%
  • Supply voltage 190 – 240 V
  • Fusing 16A
  • Wire cross section 1.5mm
  • Supply voltage 340 – 440 V
  • Fusing 10A
  • Wire cross section 1.5mm
  • Supply voltage 500 – 600 V
  • Wire cross section 1.5mm

Equipment:

  • air table
  • side table right
  • side table left
  • light barrier
  • cutting line indicator
  • optical cutting line indicator
  • Eltromat
  • 2 knives
  • 1 set of operator manuals
  • 1 set of electrical diagrams
  • 1 spare part catalogue
  • standard equipment
